Concrete Floor Thickness Requirements for Car Hoists

Crucial Considerations for Installing a Car Hoist in Your Garage

If you are considering the installation of a car hoist within your garage, it is essential to ensure that your concrete floor conforms to the required specifications. A robust and stable foundation is not merely important for the effective operation of the hoist; it is also vital for safeguarding your vehicles and anyone using the equipment. Thorough preparation and adherence to established guidelines can significantly enhance both the performance and longevity of your car hoist installation.

Most car hoists necessitate a concrete slab that is at least 100mm (4 inches) thick. This specific measurement is crucial as it allows for the even distribution of weight from both the vehicle and the hoist, thereby reducing the risk of potential cracking or sinking over time. For more heavy-duty hoists, considering a thicker concrete slab, potentially reaching up to 150mm (6 inches), is advisable to ensure optimal performance and safety throughout its use.

Comprehensive Steps to Determine the Required Concrete Thickness for Your Car Hoist

The thickness of your concrete floor is a vital factor in the safe installation and operation of a car hoist. Numerous factors must be taken into account when evaluating the appropriate depth for your slab to ensure it can adequately support the loads it will endure during use. Understanding these factors can help prevent costly mistakes and enhance the safety of your garage setup, providing peace of mind as you operate your car hoist.

Evaluating Load Capacity for Your Car Hoist Installation

Car hoists exert significant stress on the concrete floor beneath them. Thus, it is essential to understand the total weight that your concrete floor must support. This consideration includes not only the weight of the vehicle but also the hoist itself, which can add considerable load to the overall weight supported by the floor.

A standard passenger car typically weighs between 1,500 to 2,000 kg, while the hoist may contribute an additional 500 to 1,000 kg. Furthermore, it is wise to factor in extra weight as a safety buffer to ensure that your structure can accommodate unforeseen circumstances and provide reliable support during operation.

For most home garages, a concrete thickness ranging from 100 mm to 150 mm is generally sufficient. However, if you anticipate lifting significantly heavier vehicles, it may be necessary to consider a thicker slab to ensure safety and stability during operation, thereby safeguarding your investment.

Engaging with a structural engineer is a prudent decision. Their expertise can provide tailored advice and help you calculate the precise thickness needed based on your unique circumstances and specific requirements, ensuring the long-term functionality of your hoist.

Understanding the Diverse Types of Car Hoists and Their Concrete Thickness Needs

It is vital to recognise that different types of car hoists come with distinct requirements regarding concrete thickness. Two-post lifts and four-post lifts are two popular options among homeowners who are keen to incorporate a car hoist into their garage setup.

Two-post lifts typically exert pressure at specific points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated load. This ensures that the hoist operates safely and efficiently without compromising structural integrity.

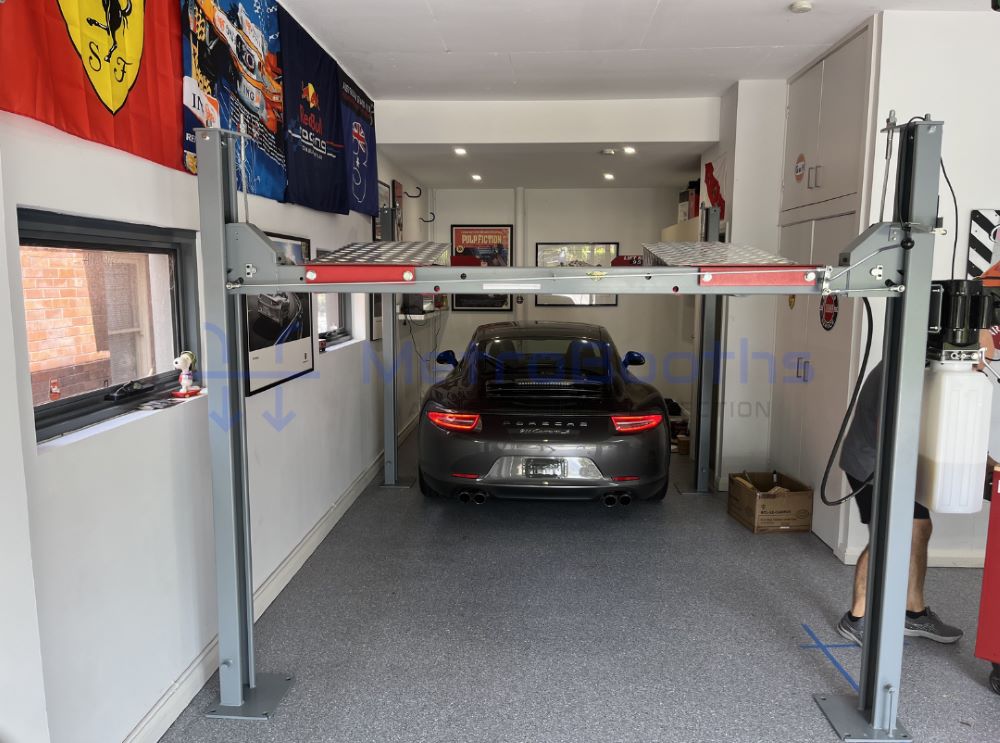

In contrast, four-post lifts tend to distribute weight more evenly across a larger area, allowing them to function effectively with a slightly thinner slab, usually within the range of 100 mm to 125 mm. This understanding is pivotal in your planning and installation process, impacting both safety and functionality.

Always consult the manufacturer's specifications for the hoist you are considering, as they usually delineate the minimum concrete thickness required for safe operation. Adhering to these guidelines is crucial for achieving optimal performance and extending the lifespan of your equipment.

Bear in mind that these recommendations serve as general guidelines. Your specific needs may vary based on the configuration of your garage and the types of vehicles you intend to lift, necessitating a tailored approach to installation.

Grasping the Significance of Concrete Strength and Reinforcement Techniques

The strength of your concrete is just as critical as its thickness. Stronger concrete can often be effectively used at a thinner depth while still providing adequate support for heavy loads, particularly in the context of a car hoist installation, where safety is paramount.

It is advisable to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry experts recommend opting for concrete with a strength of up to 32 MPa for applications that involve heavy-duty use and frequent vehicle lifting, ensuring that your installation remains robust and reliable.

Incorporating reinforcement techniques is essential for significantly enhancing the durability of your concrete. The addition of steel mesh or rebar can greatly improve the overall strength of your concrete floor. Consequently, this can enable you to utilise a thinner slab while still ensuring it can effectively support heavy loads during operation, thus maximising safety.

For most home garages, SL82 mesh presents a reliable option, providing sufficient strength for the majority of car hoists without incurring excessive costs. This consideration is particularly important for budget-conscious homeowners looking to balance affordability with quality.

If you have concerns regarding potential cracking, consider integrating fibres into your concrete mix. This inclusion can assist in mitigating the formation and propagation of small cracks over time, thereby enhancing the longevity of your installation and protecting your investment.

Critical Installation Factors for Achieving Safe and Efficient Car Hoist Operation

When installing a car hoist, meticulous site preparation and consistent floor maintenance are of utmost importance. By paying careful attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately protecting your investment and ensuring peace of mind while working in your garage.

Key Site Preparation and Concrete Pouring Techniques for a Successful Car Hoist Installation

Before embarking on the installation of your car hoist, it is imperative to verify that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and devoid of any cracks to ensure optimal performance and safety during use, mitigating any potential risks associated with improper installation.

For new concrete pours, it is essential to utilise steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Furthermore, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability, which are critical for safe operation.

Avoid placing the hoist over expansion joints or weak areas of the concrete, as this can lead to instability and safety hazards. If you are uncertain about the strength and integrity of your floor, it is highly advisable to consult a professional who can accurately assess its condition and provide recommendations for any necessary improvements.

Essential Ongoing Maintenance After Your Car Hoist Installation

Once your car hoist is installed, it is crucial to regularly monitor the condition of the concrete surrounding it. Keep an eye out for any cracks, chips, or signs of stress, and address any issues promptly to prevent larger complications that could significantly affect the functionality of your hoist and potentially jeopardise safety.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural issues. Additionally, consider using protective mats under the lift arms to minimise wear and tear on the floor, thereby extending its lifespan and ensuring that your garage remains safe and functional.

Regularly check the tightness of the anchor bolts, as loose bolts can cause damage to the concrete and render the hoist unsafe for operational use. This simple maintenance step can prevent costly repairs and ensure safe usage, allowing you to operate your hoist with confidence.

Think about applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly extend the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment for any homeowner looking to maintain the integrity of their garage.

Common Inquiries Regarding Car Hoist Installation and Concrete Thickness Requirements

Installing a car hoist necessitates careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some common questions related to the concrete requirements for various types of lifts, providing clarity and guidance for prospective hoist owners.

What is the Minimum Concrete Thickness Recommended for a Two-Post Lift Installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer's specifications, as certain models may require thicker slabs for safe operation, thus ensuring optimal performance and safety.

What Specifications Must a Concrete Slab Meet for a Four-Post Hoist Installation?

Typically, a four-post hoist necessitates a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It is wise to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, ensuring peace of mind and safety during use.

Is It Safe to Install a Car Hoist on a Concrete Floor Thinner Than 100mm?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe operation, ensuring both functionality and safety.

What Slab Thickness is Generally Recommended for Vehicle Lift Systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use, thus accommodating the demands of heavier vehicles.

What Weight Can a 100mm Thick Concrete Floor Support During Hoist Operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It is advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements, ensuring safety and reliability.

What Factors Should Be Considered When Calculating Concrete Thickness for Heavy Lifting Equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist, maximising safety and efficiency throughout its lifespan.
