Concrete Thickness for Car Hoists: Essential Insights

When planning to install a hoist in your workshop, it is vital to assess not only the hoist selection but also the condition and specifications of your floor. A car hoist exerts substantial point loads through a limited number of bolts, making it critical that the underlying concrete slab can adequately support this weight. This concern is particularly relevant for workshops in Sydney, Melbourne, Brisbane, and across Australia, so here’s a clear answer to this important question.

There is no one-size-fits-all thickness for hoist installations. The appropriate slab thickness depends on the specific type of hoist, its rated load capacity, and the installation guidelines provided by the manufacturer. It is essential that your installer, and in ambiguous situations, a structural engineer, assesses your floor's suitability before proceeding with the installation.

Which Factors Affect the Floor Requirements for Your Hoist Installation?

There is no single measurement that applies universally, as each hoist imposes unique loads on the floor. For instance, a two-post hoist transmits the entire weight of the vehicle through two columns, concentrating the load at the baseplate bolts. Conversely, a four-post hoist distributes the load across four posts and a larger footprint. A scissor lift, operating closer to the ground, affects the slab differently. The specific type of hoist dictates the necessary specifications, rather than relying on a generic measurement.

Three primary factors determine what your slab must support.

Understanding Your Hoist Type and Its Load Capacity

A typical two-post hoist for cars and light commercial vehicles has different load requirements compared to a heavy-duty four-post hoist designed for larger 4WDs and vans. Hoists with higher capacities exert greater loads at their anchor points, often necessitating a thicker and more robust slab. You can find the capacity information on the hoist’s data plate and in the accompanying manual, which should serve as the foundation for your floor specifications.

Following the Manufacturer’s Installation Guidelines

All reputable hoists come with an installation manual that specifies the minimum concrete thickness, required concrete strength, suitable anchor types, and the necessary distances from any joints or slab edges. This manual is crucial for ensuring a successful installation. If the slab does not meet these criteria, the hoist installation should be delayed until compliance is achieved.

Evaluating the Condition and Composition of Your Existing Slab

Not all slabs of similar thickness provide equal support. Factors such as reinforcement quality, curing processes, proximity to control joints or cracks, and the conditions beneath the surface all influence the slab’s capacity to support a hoist. An aged slab that appears sound may still pose significant risks. It is advisable to have a qualified professional evaluate the slab rather than relying solely on surface observations.

What Is the Recommended Slab Thickness for Hoist Installation?

While many seek a definitive figure for slab thickness, it is essential that this specification comes from your hoist’s installation manual, rather than from a generic article. The manual outlines the minimum slab thickness, concrete strength, and often specifies a minimum curing period before anchors can be installed. Heavier hoists, specific anchoring systems, or suboptimal slabs may require stricter specifications.

This approach is not evasive; it prioritises safety. The reliability of a hoist is directly linked to the integrity of the surface it is anchored to. Specifications must come from the manufacturer of your specific model, and consulting a structural engineer is advisable if the floor is old, uncertain, or marginal. Provide us with details about the hoist you are considering and the condition of your floor, and we will assist you in determining the appropriate specifications.

Indicators That Your Slab May Be Insufficient

While you cannot fully evaluate a slab with only a visual inspection, several indicators should be communicated to your installer before they provide a quote. If any of these conditions apply, mention them early to facilitate proper evaluation rather than encounter issues on installation day.

Is Your Slab Thin, Aged, or Uncertain?

If you are in a leased space and cannot ascertain the thickness or construction details of the floor, resolving this issue is critical. Older industrial slabs can vary significantly in quality. In the absence of documentation, a core test or an evaluation by an engineer can provide valuable clarity.

Are Cracks, Movement, or Hollow Sounds Evident?

Visible cracks near the intended anchor points, areas that have lifted or settled, or a hollow sound when tapping the surface can indicate underlying problems. While these signs do not automatically disqualify a slab from supporting a hoist, they necessitate further investigation before any anchoring occurs.

Will the Hoist Be Installed Near a Joint or Edge?

Anchors positioned too close to control joints, expansion joints, or slab edges can lead to inadequate anchoring. Hoist manuals specify minimum edge distances to minimise this risk. The placement of the hoist on the floor is as crucial as the slab's thickness.

Who Verifies the Safety of Your Floor for Hoist Installation?

This consideration is crucial for your safety. The suitability of your slab for a hoist is confirmed by your installer, who will adhere to the specifications outlined by the hoist manufacturer. In case of any uncertainty, a structural engineer should be consulted. This decision should not rely on informal sources such as YouTube videos or casual recommendations, as the repercussions of a miscalculation could include a vehicle falling.

For standard installations on known, compliant slabs, the installer following the manual is typically adequate. If the floor is old, undocumented, marginal, or if the hoist has a high capacity, engaging an engineer for assessment is prudent. A core sample can confirm the actual thickness and strength, while an engineer can determine if the slab can support the load or if modifications, such as a thickened pad or a new pour, are necessary.

At MetroBooths, we help workshops select the right hoist tailored to their specific site requirements rather than simply offering a product. Share information about your floor and the weight you intend to lift, and we will guide you to the appropriate hoist and identify any necessary checks beforehand.

Choosing the Most Appropriate Hoist for Your Existing Floor

Often, the most practical approach is to select a hoist that is compatible with your existing slab rather than incurring additional costs for concrete repouring. There is a wide variety of hoist types available, and the optimal choice depends on your floor's characteristics, ceiling height, bay configuration, and the types of vehicles you work on.

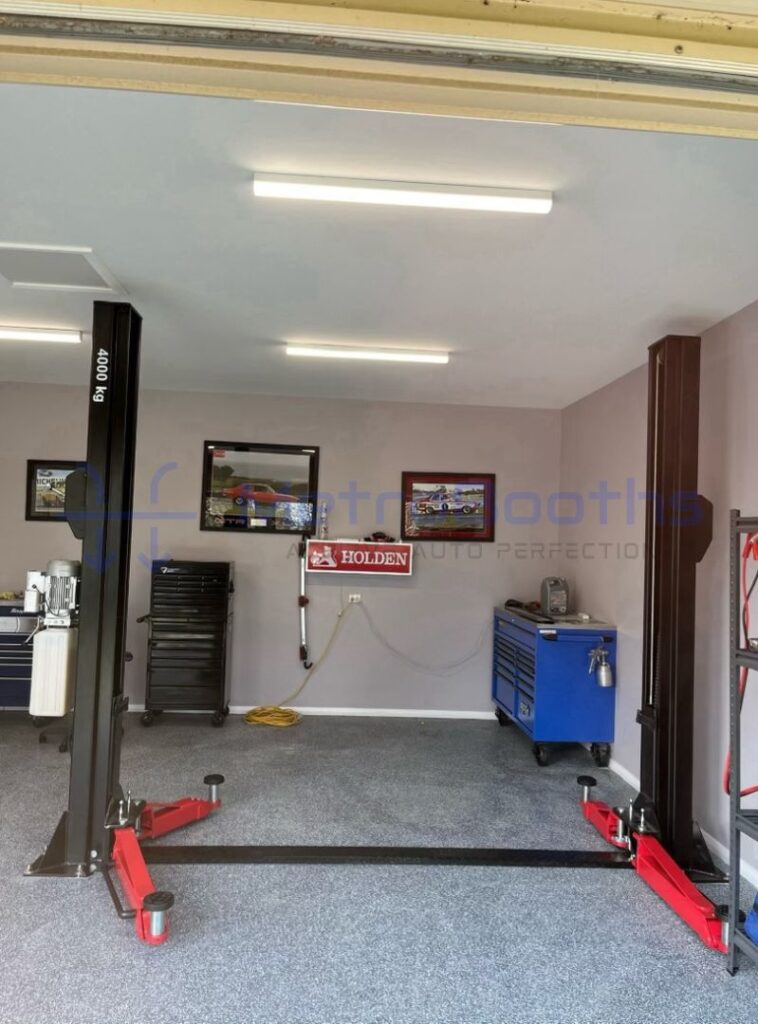

A two-post hoist is the industry standard for cars and light commercial vehicles, and it is the type most frequently associated with slab inquiries due to its unique loading characteristics. If your floor or layout can accommodate a wider footprint, a four-post hoist distributes loads differently and is often preferred for storage or heavier vehicles. If space or slab depth is limited, consider a scissor lift or low-rise option.

Explore our extensive range of hoists, then consult with us about your workshop’s specifics. We offer supply and installation services throughout Australia and prefer to address any flooring concerns before any drilling takes place.

Common Questions Regarding Hoist Installation

What Is the Minimum Concrete Thickness Required for a Two-Post Hoist?

There is no one-size-fits-all thickness for every two-post hoist, as requirements differ based on capacity and anchor type. The necessary thickness is detailed in your specific hoist’s installation manual, which specifies the minimum slab thickness and concrete strength for that model. For older or undocumented slabs, consulting a structural engineer or performing a core test will provide confirmation. Share your hoist details with us, and we will direct you to the correct specifications.

Is It Possible to Install a Car Hoist on an Existing Workshop Slab?

Yes, it is often feasible, provided the existing slab meets the hoist manufacturer’s minimum thickness, strength, and edge-distance requirements. Many workshops successfully install hoists on existing floors. It is vital to ensure that the slab conforms to the specifications rather than making assumptions. If the floor is undocumented, cracked, or questionable, it should be evaluated before installation. A core sample and an engineer’s assessment can provide the necessary clarity.

What Concrete Strength Is Required for a Car Hoist?

Most car hoists specify a minimum concrete compressive strength in their installation manuals, with higher-capacity hoists potentially requiring more robust specifications. Concrete strength is influenced not only by the mix used but also by how the slab was cured and reinforced. This is why a newly poured slab typically requires adequate time to cure before anchors are installed. Always refer to the specifications in your hoist’s manual and confirm with your installer or engineer based on your specific site conditions.

Do I Need an Engineer to Evaluate My Floor Before Hoist Installation?

Not necessarily, but it may be required in certain situations. For a straightforward installation on a known, compliant slab, following the manufacturer’s guidelines with your installer is generally sufficient. You should engage a structural engineer if the floor is old, undocumented, cracked, or marginal, or if you are installing a high-capacity hoist. An engineer can verify thickness and strength through a core test and advise whether the slab is suitable or needs remediation. When in doubt, seeking an assessment is a wise precaution. It is more cost-effective than dealing with the consequences of an inadequate installation.

What If My Concrete Floor Is Not Thick Enough for a Hoist?

If your slab does not meet the hoist’s specifications, installation should not proceed until the floor is brought up to the required standard. Anchoring into an insufficient slab presents significant risks, including the possibility of anchor failure under load, which could lead to a vehicle falling. Common solutions include pouring a thickened concrete pad in the hoist’s footprint or adding a new section of slab according to the manufacturer’s specifications. An engineer can recommend the most appropriate option for your circumstances.

Ensure the Safety of Your Floor Before Installation

The safety of a hoist is fundamentally linked to the integrity of the slab it is anchored to. Verify that the floor meets all specifications, adhere to the manufacturer’s guidelines, and consult an engineer whenever uncertainty arises. By following these steps, the installation process can be smooth and successful.

Contact MetroBooths regarding your workshop floor and lifting needs, and we will assist in specifying the right hoist for your site. Call us at 0433 426 291 or email sales@metrobooths.com.au for prompt assistance.
