Dedicated Circuits for Workshop Heavy Tool Usage

If you possess a shed on a rural property and are considering converting this area into a fully operational workshop, a critical aspect to prioritise is the electrical setup.
Utilising equipment such as a MIG welder, air compressor, and table saw on the same circuit as your home can lead to significant complications, including tripped breakers, flickering lights, and potentially hazardous overload scenarios.

This comprehensive guide delves into essential considerations for wiring a robust workshop in the rural regions of the Mid North Coast. We will explore vital subjects such as dedicated circuits, sub-boards, and the application of three-phase power for larger machinery. If your needs are limited to basic power requirements for your shed—such as lighting and a few outlets—please refer to our guide on Shed Wiring on Acreage for a more suitable starting point. This article is tailored for workshops that demand substantial power.

Understand the Importance of Dedicated Circuits for Your Workshop

Most domestic properties feature multiple power points on shared circuits, which is effective for low-power devices like kettles and televisions. complications arise when attempting to operate a 32-amp MIG welder alongside an air compressor at the same time. This situation can lead to serious electrical problems.

Consider the potential outcomes of connecting heavy machinery to household circuits:

• Frequent tripped breakers — A welder drawing over 30 amps on a 20-amp circuit will trip the breaker immediately or, in the worst-case scenario, cause the wiring to overheat before the breaker intervenes.
• Voltage drops — Long cable runs from the main board to the shed may result in voltage sag. This can lead to your tools operating at elevated temperatures, reduced speeds, and deteriorating more quickly over time.
• Power disruptions in the house — Your partner may experience a power outage in the kitchen when you initiate the compressor, leading to unwanted discussions.
• Increased fire hazards — Overloaded wiring within walls and cable runs is a primary contributor to electrical fires in rural areas.

Implementing dedicated circuits effectively addresses these challenges. Each heavy tool receives its own circuit, correctly sized for its load, and equipped with its own breaker protection. This approach ensures that there is no sharing of circuits, thus preventing overloads.

Assess the Power Requirements of Common Workshop Equipment

Before your electrician can design an effective circuit layout, it is crucial to understand the power requirements of your equipment. Below is a detailed breakdown of the typical power draws for common workshop tools:

• MIG welder — Requires between 15A and 32A depending on the model. Larger 240V welders tend to operate at the higher end. Three-phase units have different requirements (details to follow).
• Air compressor — Draws approximately 10A to 15A. The startup surge can be considerable—compressor motors often draw 3 to 4 times their running current for a few seconds during startup.
• Table saw — Typically consumes 10A to 15A for a high-quality cabinet saw. Less expensive contractor saws may require less power, but opting for budget options is not advisable.
• Lathe (wood or metal) — Similar to table saws, these generally require between 10A and 15A, with metal lathes usually needing more power.
• Dust extractor — Approximately 10A for a single-phase unit. It operates continuously while using other tools, so it should be on its own circuit.
• Plasma cutter — Draws between 20A and 30A, akin to a welder, and also requires a dedicated circuit.

When the total power draw is aggregated, it becomes evident that a single 20-amp circuit from the house will not suffice. A well-equipped workshop can easily require 80 to 100+ amps across all circuits when operating at full capacity, highlighting the necessity for strategic planning.

Choose the Appropriate Circuit Breaker Size and RCD Protection for Safety

Every circuit in your workshop must feature a breaker that corresponds to the cable size and anticipated load. Your electrician will calculate this based on your equipment, but as a general guideline:

• 15A or 20A circuits — Suitable for general power points, dust extractors, lighting circuits, and lighter tools.
• 32A circuits — Essential for welders, plasma cutters, and other heavy single-phase machinery.
• Three-phase breakers — Sized according to the specific equipment requirements (details provided below).

RCD protection is vital. In accordance with AS/NZS 3000 (the Australian Wiring Rules), all power and lighting circuits must possess RCD (safety switch) protection. This stipulation is not optional; it is a legal requirement designed to safeguard against the high-risk nature of workshop environments.
Concrete floors, metal tools, dust, and moisture increase the likelihood of earth faults. RCDs immediately cut power if a current leak to earth occurs, which can be the difference between a minor shock and a serious injury.

Typically, your electrician will implement a combination of RCDs and MCBs (miniature circuit breakers), or RCBO units that integrate both functionalities. RCBOs are particularly beneficial in workshops because a fault on one circuit does not interrupt power to the others, enhancing safety and reliability.

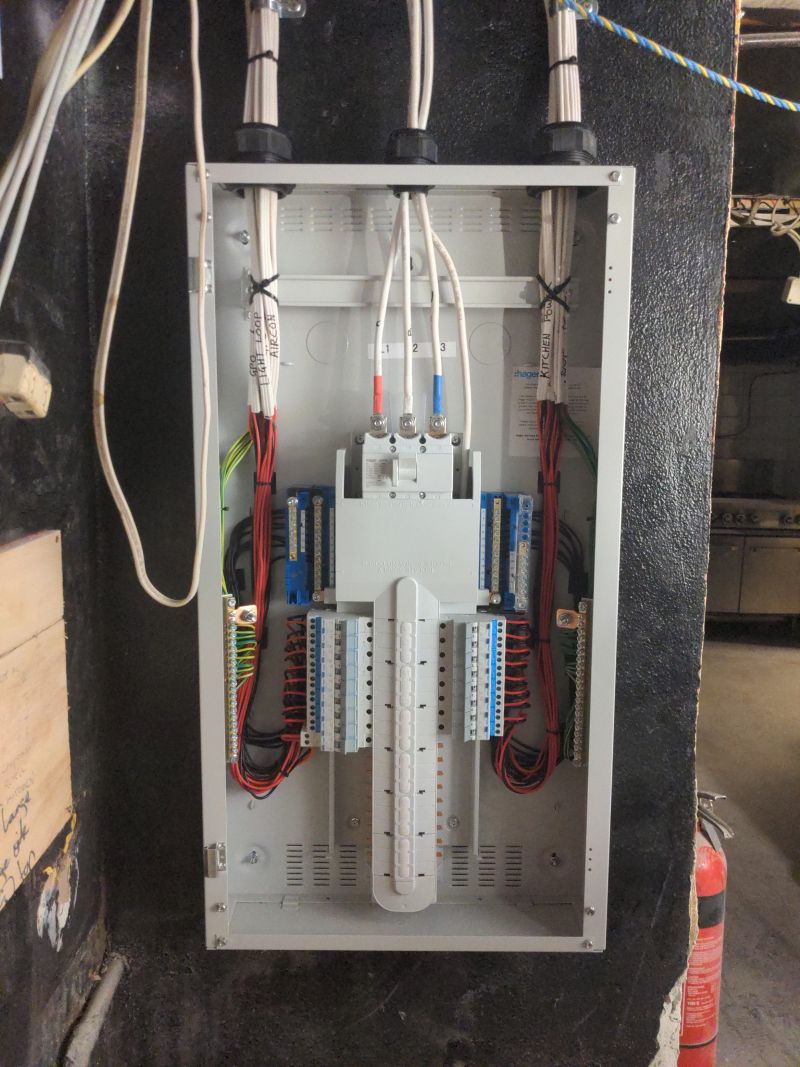

Establish a Dedicated Sub-Board for Your Workshop's Electrical Requirements

Rather than running multiple individual cables back to the main switchboard, installing a dedicated sub-board in your workshop is a more efficient approach. The advantages include:

• Shorter cable runs — A single heavy feed cable connects from the house (or a separate meter) to the workshop board, followed by shorter runs from the sub-board to each outlet. This arrangement reduces voltage drop and lowers cable expenses.
• Simplified fault diagnosis — Each circuit is clearly labelled and easily accessible within the workshop. If a breaker trips, you won’t need to return to the house to reset it, saving both time and effort.
• Future expansion — A properly sized sub-board allows for additional circuits in the future, facilitating the addition of new tools as your workshop evolves.
• Isolation capability — You can switch off all workshop power from a single main switch without affecting the house's electricity, enhancing safety during maintenance tasks.

If your house switchboard is outdated or operating at full capacity, you may need an upgrade before effectively powering the workshop sub-board. Older ceramic fuse boards may not safely accommodate the increased load.

A typical workshop sub-board setup includes a main switch, individual RCBOs for each circuit, a dedicated lighting circuit, and a surge protection device. The incoming feed cable will be sized based on the total expected load, plus a buffer for future additions, ensuring optimal performance and safety.

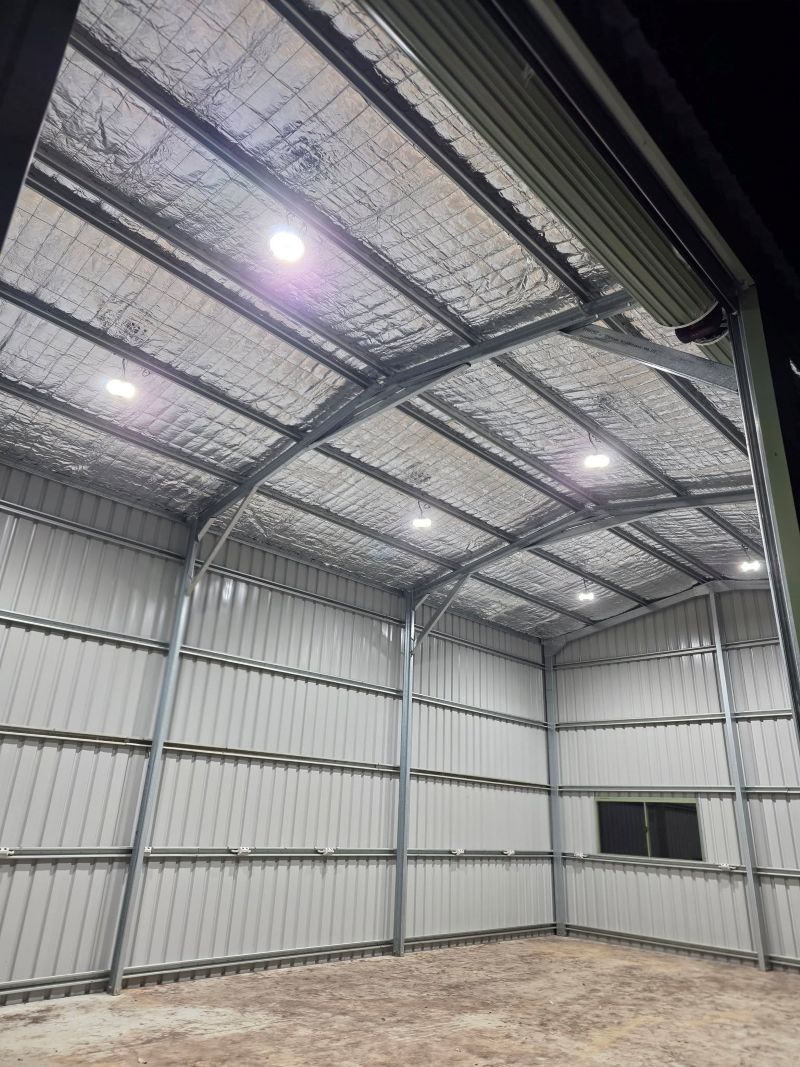

Guarantee Your Workshop Has Adequate Lighting for Safety and Efficiency

Adequate lighting is crucial for safety in your workshop. It is essential to clearly see your work, especially around sharp blades and hot materials. Here are some key lighting considerations:

• High-lumen LED battens — LED panels or battens offer bright, even illumination throughout the space. Aim for a minimum of 500 lux at bench height to ensure clarity.
• Dust-proof fittings — Standard lights can become clogged with sawdust and metal shavings. Opt for IP-rated fittings that are resistant to dust and moisture, ensuring longevity and safety.
• Task lighting at workstations — While overhead lighting covers the general area, focused lighting at the workbench, lathe, and drill press is vital for precision work and safety.
• Separate lighting circuit — Lighting should operate on its own circuit, guaranteeing that you still have light if a power circuit trips. Being left in the dark next to a running table saw poses a significant safety risk.

We possess extensive experience in lighting layouts for commercial spaces. Our team can assist you in designing a workshop lighting plan that significantly enhances your working environment and safety.

Plan for Effective Ventilation and Dust Extraction Circuits

When engaging in activities such as woodworking or welding, ensuring proper ventilation is as vital as having sufficient power. Dust extraction systems and exhaust fans require their own dedicated circuits because:

• Continuous operation — Your dust extractor must function whenever you’re cutting. It cannot share a circuit with the tool it serves, as this compromises efficiency and safety.
• Motor startup loads — Dust extraction fans and collectors experience significant startup surges, akin to compressors, which necessitate dedicated circuits.
• Interlocked switching — In an optimally designed workshop, the dust extractor can be wired to activate automatically when specific tools are powered on. This requires careful circuit design to ensure functionality.

Plan for at least one dedicated 15A circuit for dust extraction and another for general ventilation. If you’re using a cyclone-style dust collection system, it might require a 20A circuit based on motor specifications, ensuring efficiency and effectiveness in maintaining air quality.

Leverage Three-Phase Power for Efficient Operation of Heavy Equipment

When engaging in intensive metalwork or operating large compressors (5HP+) or commercial-grade woodworking machinery, single-phase power may reach its limits. Three-phase power provides numerous advantages:

• Increased power capacity — Three-phase motors are more efficient and deliver greater power without the excessive startup surges associated with single-phase motors.
• Support for larger welders and plasma cutters — Industrial MIG/TIG welders and CNC plasma tables typically operate on three-phase power for optimal performance.
• Smoother operation — Three-phase motors function more smoothly and run cooler, extending the lifespan of your tools and machinery.

Accessing three-phase power in rural locations on the Mid North Coast depends on availability at the street level. Some properties may already have a three-phase supply, while others might require a phase converter or a new connection from Essential Energy.
For further details, please consult our guide on Do I Need Three-Phase Power on My Property?

If three-phase power is accessible, your workshop will necessitate the installation of a three-phase switchboard with appropriately rated breakers and an effective earthing system to ensure safety and reliability.

Integrate Surge Protection to Safeguard Your Equipment

Tools featuring electronic controls, variable frequency drives (VFDs), digital displays, and inverter welders are susceptible to voltage spikes. Notably, your workshop produces surges each time a large motor starts or stops. Combined with the voltage instabilities often found in rural power lines, your valuable equipment is at risk.

Installing a surge protection device (SPD) at the sub-board can intercept voltage spikes before they impact your tools. This cost-effective measure can prevent the need for replacing the electronic components of a $3,000 welder or a CNC controller, thus preserving your investment.

If your property is prone to storms (a common occurrence on the Mid North Coast), we recommend adding surge protection at the main switchboard to guard against lightning-induced surges that could damage your equipment.

For properties that rely on a generator for backup power, incorporating a generator changeover switch ensures seamless transitions between mains power and generator supply without risking back-feeding or damaging connected equipment, providing peace of mind during power outages.

Consider Additional Features for Your Workshop Fit-Out

Here are several additional elements to incorporate into your workshop wiring from the outset:

• Ample power points — Install more power points and switches than you anticipate needing. Use weatherproof GPOs if the workshop is open-sided to ensure durability. Consider double power points at every bench and outlets at key machinery locations to enhance accessibility.
• Data and communications — If you require internet access for streaming music, operating a CNC machine, or monitoring security cameras, plan for data and TV wiring concurrently with the electrical setup. It is significantly easier to run cables during the initial fit-out than after the walls are completed, preventing future complications.
• External lighting — Include floodlights outside the workshop to facilitate access during early mornings and late evenings, especially in rural areas lacking street lighting, enhancing safety.
• EV or equipment charging — If you’re using electric equipment (battery-powered tools, an electric vehicle, or an electric quad bike), implement a dedicated charging circuit to prevent overloads on general outlets, ensuring efficient operation of all devices.

Accurately Estimate the Cost of Your Workshop Electrical Fit-Out

Cost estimates will vary based on workshop size, the number of circuits required, and whether three-phase power is necessary. As a rough guideline for the Mid North Coast:

• Basic single-phase setup (sub-board, 4–6 circuits, lighting) — Starting from $5,000, providing foundational electrical support.
• Complete dedicated sub-board (8–12 circuits, multiple heavy tool circuits, dust extraction, comprehensive lighting design) — Starting from $10,000, ensuring ample capacity for serious workshop needs.
• Three-phase workshop build (three-phase supply, dedicated board, heavy equipment circuits, complete fit-out) — Starting from $15,000+, accommodating extensive power requirements.

These figures represent starting points. Complex layouts, lengthy cable runs from the mains, or the necessity for upgrades from Essential Energy will increase costs. We provide transparent quotes based on your specific workshop and equipment needs—no hidden fees, ensuring you know exactly what to expect.

Critical Reminder: All Electrical Work Must Be Conducted by Licensed Professionals

This is a vital point. In New South Wales, all electrical wiring work must be performed by a licensed electrician. This includes the installation of new circuits, sub-boards, power points, and the connection of equipment. There is no DIY exemption for electrical work, even on your own property, to ensure safety and compliance.

Hack-It Electrical Solutions holds NSW Electrical Contractor Licence #230609C. We operate throughout Bellingen, Coffs Harbour, Sawtell, Nambucca Heads, Woolgoolga, Urunga, Dorrigo, Valla Beach, and Toormina, providing quality service.

Engaging in unlicensed electrical work can void your insurance, create significant safety hazards, and lead to penalties. If someone offers to perform the work cheaply without a licence, it’s not a saving—it’s a risk that can result in serious consequences.

Find Answers to Your Common Queries Regarding Workshop Electrical Needs

Can I Operate My Welder from a Standard Power Point?

Small stick welders (up to approximately 140A output) can be used with a standard 10A or 15A power point. Larger units necessitate a dedicated circuit. A MIG welder with a capacity of 200A or more connected to a 10-amp GPO will trip the breaker immediately—or potentially cause the wiring to overheat if the breaker is faulty. If you weld regularly, it is essential to have a dedicated 32A circuit installed to ensure safe operation.

How Many Circuits Are Typically Needed in a Workshop?

The number of circuits required depends on your tools, but a well-equipped workshop generally requires a minimum of 8 to 12 circuits. This includes dedicated circuits for each heavy tool (welder, compressor, plasma cutter), general power point circuits, dust extraction, lighting, as well as a couple of spares for future additions. We tailor the design based on your specific equipment list, ensuring you have everything necessary.

Is Three-Phase Power Essential for a Home Workshop?

Not necessarily. Most home workshops function adequately on single-phase power with dedicated circuits. Three-phase power is only required if you are using commercial-grade equipment, such as large compressors (5HP+), three-phase welders, or CNC machines. Refer to our comprehensive guide on Do I Need Three-Phase Power on My Property? to determine if it meets your requirements, ensuring you make an informed decision.

Can My Existing Switchboard Support a Workshop?

It’s possible. If your house switchboard is modern and has spare capacity, we can often connect a workshop sub-board to it. if it consists of an outdated ceramic fuse board or is fully loaded, an upgrade will be necessary before proceeding. We will assess this during the quoting process to ensure everything is compliant.

What Is the Typical Duration for a Workshop Electrical Fit-Out?

A basic single-phase setup can typically be completed within 1 to 2 days. A comprehensive fit-out encompassing multiple heavy circuits, three-phase power, and extensive lighting usually takes 3 to 5 days, depending on the complexity and cable run distances. We will provide a timeline along with your quote, ensuring you know what to expect.

Ensure Your Workshop Is Properly Wired for Safety and Efficiency

If you are establishing a workshop on your property and wish to ensure it is executed correctly from the outset, get in touch with us. We will visit your site, evaluate your space and equipment list, and develop a plan that meets your power requirements without compromising safety or quality, ensuring a successful workshop setup.
