Dedicated Circuits for Workshop Power Solutions for Heavy Tools

If you possess a shed on rural land and are considering transforming it into a fully operational workshop, it is crucial to focus on the electrical installation. Utilising a MIG welder, air compressor, and table saw on the same circuit as your home can lead to significant complications. These include frequent tripped breakers, flickering lights, and potentially hazardous overload situations that threaten both safety and functionality.

This comprehensive guide explores the essential elements of wiring a reliable workshop in the Mid North Coast. We will discuss the importance of dedicated circuits, sub-boards, and the benefits of three-phase power for larger equipment. If your needs are limited to basic power requirements—such as lighting and a few outlets—please consult our guide on Shed Wiring on Acreage for a suitable starting point. This article specifically addresses workshops that require significant power for demanding tasks.

Understand the Importance of Dedicated Circuits for Your Workshop's Power Supply

Many residential properties operate multiple power points on shared circuits, which is generally adequate for low-power devices such as kettles and televisions. problems emerge when trying to use a 32-amp MIG welder and an air compressor at the same time. If not managed correctly, this can lead to serious issues.

Reflect on the potential consequences of connecting heavy machinery to household circuits:

• Frequent tripped breakers — A welder drawing over 30 amps on a 20-amp circuit will immediately trip the breaker or, worse, cause the wiring to overheat before the breaker has a chance to respond.
• Voltage drops — Long cable runs from the main board to the shed can result in voltage sag. This can cause your tools to operate at higher temperatures, slow down, and deteriorate more quickly.
• Power disruptions in the home — Your partner may experience a power outage in the kitchen due to the compressor starting up. This scenario often leads to uncomfortable conversations.
• Increased fire risks — Overloaded wiring within walls and cable runs is a primary cause of electrical fires in rural areas.

Establishing dedicated circuits can effectively resolve these issues. Each heavy tool is assigned its own dedicated circuit, correctly sized for its load, along with individual breaker protection. This guarantees that nothing is shared, and consequently, nothing becomes overloaded.

Assess the Power Requirements of Common Workshop Equipment

Before your electrician can devise an effective circuit layout, it is vital to understand the power requirements of your tools. Below is an overview of the typical power draws for common workshop equipment:

• MIG welder — Requires between 15A and 32A depending on the model. Larger 240V welders typically operate at the higher end. Three-phase units will have different power requirements (additional details provided later).
• Air compressor — Consumes around 10A to 15A. The startup surge can be substantial—compressor motors often draw three to four times their running current for a few seconds upon starting.
• Table saw — Generally uses between 10A and 15A for a quality cabinet saw. Less expensive contractor saws may consume less power, but you are likely not looking for a budget option.
• Lathe (wood or metal) — Similar to table saws, these typically require between 10A and 15A, with metal lathes usually being at the higher end of the spectrum.
• Dust extractor — Approximately 10A for a single-phase unit. It must run continuously while using other tools, which means it should have its own circuit.
• Plasma cutter — Draws between 20A and 30A, similar to a welder, thus necessitating a dedicated circuit.

When you total the power draw, it becomes evident that a single 20-amp circuit from the house will not suffice. A well-equipped workshop can easily require 80 to 100+ amps across all circuits when operating at full capacity, highlighting the need for a thorough electrical plan.

Selecting Appropriate Circuit Breaker Sizes and Implementing RCD Protection

Each circuit in your workshop necessitates a breaker that aligns with the cable size and anticipated load. Your electrician will calculate this based on your equipment, but as a general guideline, consider the following:

• 15A or 20A circuits — Ideal for general power points, dust extractors, lighting circuits, and lighter tools.
• 32A circuits — Essential for welders, plasma cutters, and other heavy single-phase machinery that requires significant power.
• Three-phase breakers — These should be sized according to specific equipment requirements (details provided below).

RCD protection is essential. According to AS/NZS 3000 (the Australian Wiring Rules), all power and lighting circuits must include RCD (safety switch) protection. This legal requirement is designed to safeguard against the high-risk nature of workshop environments.
Concrete floors, metal tools, dust, and moisture heighten the likelihood of earth faults. RCDs swiftly cut power if there is a current leak to earth, which can be the difference between a minor shock and a serious injury.

Typically, your electrician will implement a combination of RCDs and MCBs (miniature circuit breakers), or RCBO units that integrate both functionalities. RCBOs are particularly advantageous in workshops because a fault in one circuit does not disrupt power to the others, ensuring a more reliable electrical system.

Install a Dedicated Sub-Board to Meet Your Workshop's Electrical Demands

Instead of running multiple individual cables back to the main switchboard, installing a dedicated sub-board in your workshop is a more efficient approach. Below are the benefits:

• Shorter cable runs — One heavy feed cable connects from the house (or a separate meter) to the workshop board, followed by shorter runs from the sub-board to each outlet. This setup reduces voltage drop and lowers cable expenses.
• Simplified fault diagnosis — Each circuit is clearly labelled and easily accessible within the workshop. If a breaker trips, you won’t need to trek back to the house to reset it, improving efficiency.
• Future expansion — A properly sized sub-board allows for the addition of more circuits in the future, making it easy to incorporate new tools later.
• Isolation capability — You can turn off all workshop power from a single main switch without affecting the house's electricity, a crucial feature for safety.

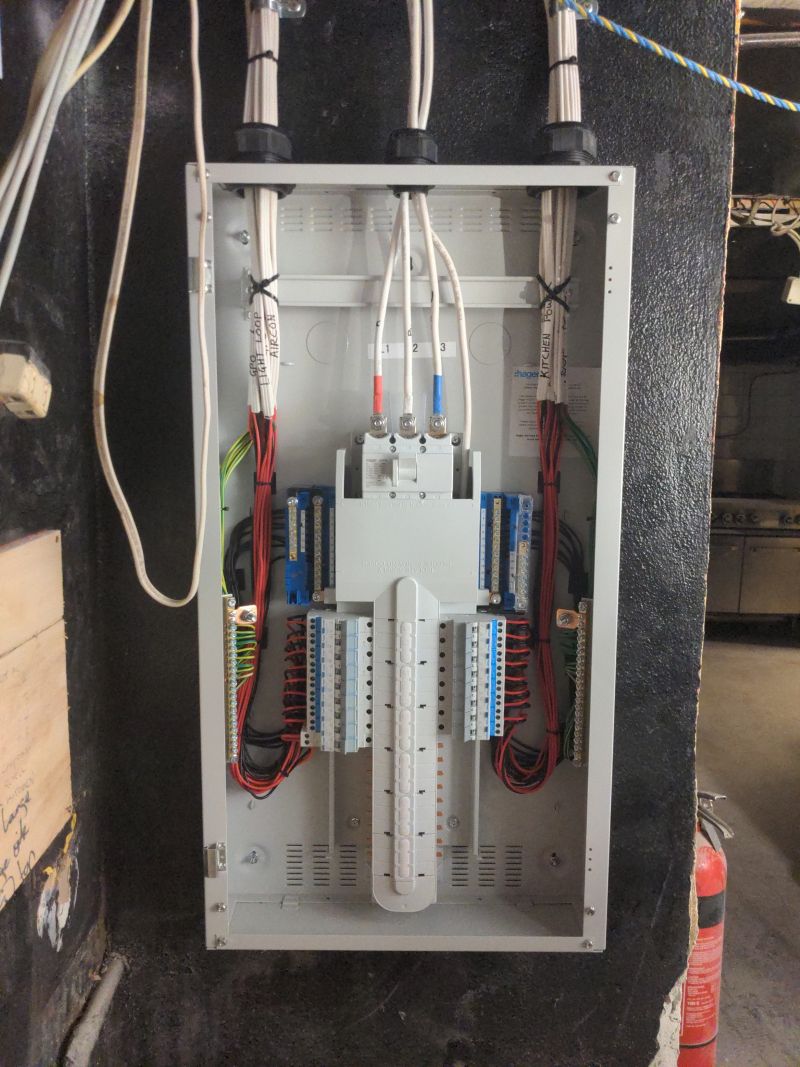

If your house switchboard is outdated or operating at full capacity, you may need an upgrade to support the workshop sub-board effectively. Older ceramic fuse boards likely will not safely handle the increased load.

A typical workshop sub-board setup includes a main switch, individual RCBOs for each circuit, a dedicated lighting circuit, and a surge protection device. We will size the incoming feed cable based on the total expected load plus a buffer for future additions to ensure long-term efficiency.

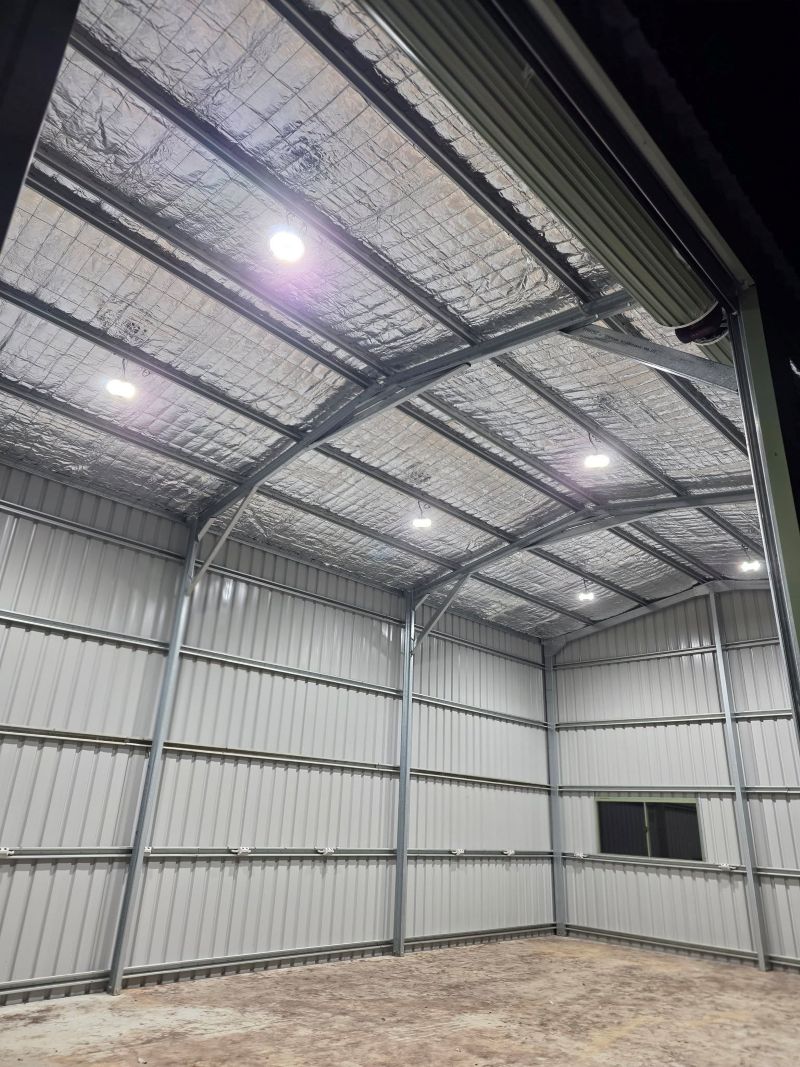

Design an Effective Lighting Strategy for Your Workshop

Proper lighting is vital for safety in your workshop. You need to clearly see your work, especially when handling sharp blades and hot materials. Below are some key lighting considerations:

• High-lumen LED battens — LED panels or battens provide bright, even illumination throughout the space. Aim for a minimum of 500 lux at bench height to ensure visibility.
• Dust-proof fittings — Standard lights can become clogged with sawdust and metal shavings. Opt for IP-rated fittings that are dust and moisture resistant for durability and safety.
• Task lighting at workstations — While overhead lighting covers the general area, focused lighting at the workbench, lathe, and drill press is crucial for precision work, enhancing productivity and safety.
• Separate lighting circuit — Lighting should operate on its own circuit, ensuring you still have illumination if a power circuit trips. Being left in the dark next to a running table saw poses a significant safety risk.

We have extensive experience with lighting layouts in commercial spaces. Our team can assist you in developing a workshop lighting plan that significantly enhances your working environment while adhering to safety standards.

Ensure Adequate Ventilation and Dust Extraction Circuits

When engaging in woodworking or welding, ensuring proper ventilation is as critical as having sufficient electrical power. Dust extraction systems and exhaust fans require their dedicated circuits due to several crucial factors:

• Continuous operation — Your dust extractor must run whenever you are cutting. It cannot share a circuit with the tool it serves, as this would compromise safety and effectiveness.
• Motor startup loads — Dust extraction fans and collectors can experience significant startup surges, similar to compressors, necessitating dedicated circuits.
• Interlocked switching — In a well-designed workshop, the dust extractor can be wired to activate automatically when certain tools are powered on. This requires careful circuit design and planning.

Plan for at least one dedicated 15A circuit for dust extraction and another for general ventilation to ensure proper airflow. If you are using a cyclone-style dust collection system, it might require a 20A circuit based on motor specifications.

Maximise the Advantages of Three-Phase Power for Heavy Machinery

When you engage in intensive metalworking or operate large compressors (5HP+) or commercial-grade woodworking machinery, single-phase power may reach its limits. Three-phase power offers numerous distinct advantages:

• Increased power capacity — Three-phase motors are more efficient and provide greater power without the excessive startup surges commonly associated with single-phase motors.
• Support for larger welders and plasma cutters — Industrial MIG/TIG welders and CNC plasma tables typically operate on three-phase power, ensuring optimal performance.
• Smoother operation — Three-phase motors operate more smoothly and run cooler, which extends the lifespan of your tools and enhances overall efficiency.

Accessing three-phase power in rural locations on the Mid North Coast depends on availability at the street level. Some properties may already have three-phase supply, while others might require a phase converter or a new connection from Essential Energy.
For more details, refer to our guide on Do I Need Three-Phase Power on My Property?

If three-phase power is available, your workshop will need an installation of a three-phase switchboard equipped with appropriately rated breakers and an effective earthing system to ensure safety and compliance.

Safeguard Your Equipment with Surge Protection

Tools featuring electronic controls, variable frequency drives (VFDs), digital displays, and inverter welders are particularly susceptible to voltage spikes. Notably, your workshop generates surges every time a large motor starts or stops. Coupled with the voltage instabilities often found in rural power lines, your equipment faces considerable risk.

Installing a surge protection device (SPD) at the sub-board can intercept voltage spikes before they impact your tools. This is a cost-effective measure compared to the expense of replacing the electronic components of a $3,000 welder or CNC controller.

If your property is prone to storms—which is common on the Mid North Coast—we recommend adding surge protection at the main switchboard to protect against lightning-induced surges that could damage your equipment.

For properties that rely on a generator for backup power, incorporating a generator changeover switch ensures smooth transitions between mains power and generator supply without risking back-feeding or damaging connected equipment.

Consider Additional Features for Your Workshop Setup

Here are several more elements to incorporate into your workshop wiring from the outset:

• Ample power points — Install more power points and switches than you anticipate needing. Use weatherproof GPOs if the workshop is open-sided. Consider double power points at every bench and outlets strategically positioned near key machinery.
• Data and communications — If you require internet access for streaming music, operating a CNC machine, or monitoring security cameras, plan for data and TV wiring concurrently with the electrical setup. It is significantly easier to run cables during the initial fit-out than after the walls are finished.
• External lighting — Include floodlights outside the workshop to facilitate access during early mornings and late evenings, particularly in rural areas lacking sufficient street lighting.
• EV or equipment charging — If you are using electric equipment (such as battery-powered tools, an electric vehicle, or an electric quad bike), implement a dedicated charging circuit to prevent overloads on general outlets.

Estimate the Costs for Your Workshop Electrical Installation

Cost estimates will vary based on the size of the workshop, the number of circuits required, and whether three-phase power is necessary. As a rough guideline for the Mid North Coast, consider the following:

• Basic single-phase setup (sub-board, 4–6 circuits, lighting) — Starting from $5,000
• Comprehensive dedicated sub-board (8–12 circuits, multiple heavy tool circuits, dust extraction, extensive lighting design) — Starting from $10,000
• Three-phase workshop installation (three-phase supply, dedicated board, heavy equipment circuits, complete fit-out) — Starting from $15,000+

These figures serve as starting points. Complex layouts, lengthy cable runs from the mains, or the necessity for upgrades from Essential Energy will increase overall costs. We provide transparent quotes based on your specific workshop and equipment needs—there are no hidden fees involved.

Important Reminder: All Electrical Work Must Be Carried Out by Licensed Professionals

This is a crucial point to emphasise. In New South Wales, all electrical wiring work must be executed by a licensed electrician. This includes the installation of new circuits, sub-boards, power points, and the connection of equipment. There is no DIY exemption for electrical work, even on your own property, to ensure safety and compliance.

Hack-It Electrical Solutions holds NSW Electrical Contractor Licence #230609C and operates throughout Bellingen, Coffs Harbour, Sawtell, Nambucca Heads, Woolgoolga, Urunga, Dorrigo, Valla Beach, and Toormina.

Engaging in unlicensed electrical work can void your insurance, create significant safety hazards, and lead to substantial fines. If someone offers to perform the work cheaply without a licence, it is not a saving—it is a risk that could have serious consequences.

Find Answers to Your Most Common Questions

Can I Use My Welder with a Standard Power Point?

Small stick welders (up to roughly 140A output) can indeed be used with a standard 10A or 15A power point. any larger units necessitate a dedicated circuit. A MIG welder with a capacity of 200A or more connected to a 10-amp GPO will trip the breaker immediately or possibly cause the wiring to overheat if the breaker is faulty. If you are welding regularly, it is essential to have a dedicated 32A circuit installed for safety and efficiency.

What Is the Typical Number of Circuits Required in a Workshop?

The number of circuits required will depend on your tools, but a well-equipped workshop generally requires a minimum of 8 to 12 circuits. This includes dedicated circuits for each heavy tool (welder, compressor, plasma cutter), general power point circuits, dust extraction, lighting, and a couple of spares for future additions. We tailor the design based on your specific equipment list to ensure optimal functionality.

Is Three-Phase Power Necessary for a Home Workshop?

Not necessarily. Most home workshops function adequately on single-phase power with dedicated circuits. Three-phase power is only required if you are using commercial-grade equipment, such as large compressors (5HP+), three-phase welders, or CNC machines. Check out our complete guide on Do I Need Three-Phase Power on My Property? to determine if it aligns with your needs and operations.

Can My Existing Switchboard Support a Workshop?

It is possible. If your house switchboard is modern and has spare capacity, we can often connect a workshop sub-board to it. if it consists of an outdated ceramic fuse board or is fully loaded, an upgrade will be necessary before proceeding. Our team will evaluate this during the quoting process to ensure your workshop is adequately powered.

What Is the Typical Duration for a Workshop Electrical Installation?

A basic single-phase setup can typically be completed within 1 to 2 days. A full fit-out encompassing multiple heavy circuits, three-phase power, and comprehensive lighting usually takes 3 to 5 days, depending on the complexity and distances for cable runs. We will provide a timeline along with your quote to keep you informed throughout the process.
