Shed Wiring Tips for Electricians on Large Properties

If you possess a shed situated on acreage and find yourself frustrated with the hassle of managing extension cords from your home, it is imperative to ensure that your shed is wired correctly. Whether your shed serves as a simple storage space requiring just a light and a power point, or as a fully equipped workshop housing welders and compressors, following the appropriate procedures is essential. In NSW, the only legal method to accomplish this task is by enlisting the services of a licensed electrician.

This detailed guide outlines the necessary steps to supply electricity to your shed, elaborating on what your electrician will require for installation, and providing a cost estimate tailored to the Mid North Coast.

Enhance Your Shed's Power Supply: A Detailed Guide to Cable Runs

The primary focus of any shed wiring project is the effective transmission of power from your main switchboard to the shed itself. On expansive properties, this distance can reach up to 30, 50, or even more than 100 metres. The longer the distance, the larger the cable diameter required to effectively manage voltage drop.

When contemplating cable runs, you have two primary options available:

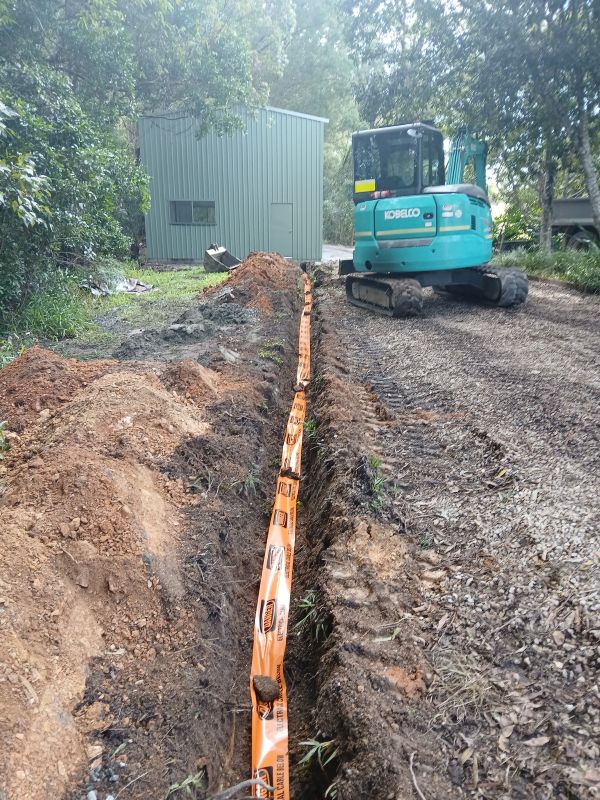

• Underground cable run — This is the most prevalent and aesthetically pleasing choice. Your electrician will install a heavy-duty cable through orange conduit buried at a minimum depth of 500mm, or deeper if heavy vehicles traverse the area. This method protects the cable from adverse weather conditions, wildlife, and falling branches, making it the preferred option for most properties with substantial acreage.
• Overhead cable run — Although this option is less common, it may be necessary if the ground is solid rock or if the terrain complicates trenching. Overhead runs must comply with specified clearance heights and require support poles, which can significantly increase costs.

For the majority of properties in and around Bellingen, Coffs Harbour, and the Mid North Coast, an underground cable run is the recommended method. Your electrician in Bellingen can assess your site and propose the best installation route.

Establishing a Reliable Power Supply for Your Shed: The Necessity of a Dedicated Sub-Board

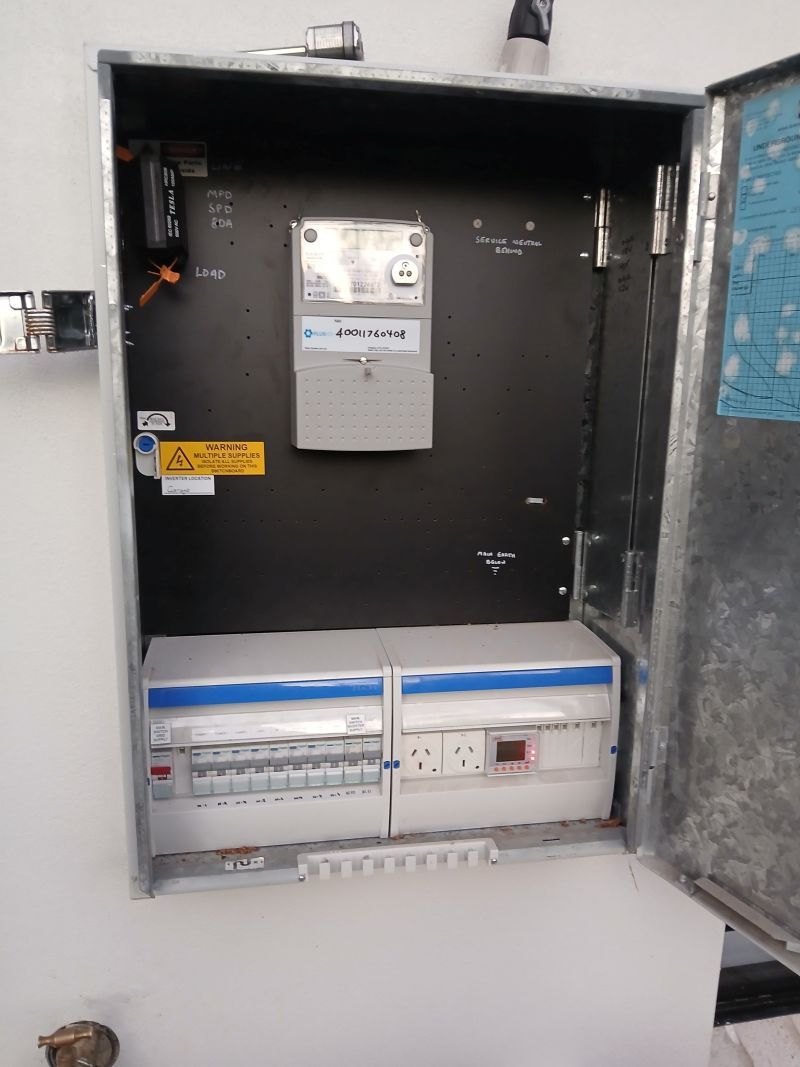

Merely running a single cable to the shed and plugging in electrical appliances is insufficient. Any shed that receives a reliable power supply must be equipped with a dedicated sub-board, often referred to as a distribution board. This functions as a mini switchboard located within the shed, enabling effective management of all circuits.

Your sub-board will typically comprise the following components:

• Main switch — This allows you to isolate all power to the shed independently from the main house, enhancing safety and control.
• RCDs (Residual Current Devices) — Mandated by NSW electrical regulations, these devices provide rapid power cut-off in milliseconds during a fault, which is crucial for safety in a shed environment where moisture, dust, and damaged leads are common.
• Circuit breakers — These offer individual protection for each circuit within the shed, covering lighting, general power, and dedicated tool circuits.

If your house's switchboard is older, your electrician may also suggest upgrading it to accommodate the additional load directed towards the shed.

What Essential Features Should Be Installed Inside Your Shed for Optimal Functionality?

The specific installations your electrician performs inside the shed will depend entirely on its intended purpose. Here’s a comprehensive overview of typical setups.

Designing an Efficient Basic Storage Shed: Key Considerations

If your shed primarily serves as a storage space for tools, a ride-on mower, or other equipment, consider implementing the following setup:

• LED batten lights — One or two ceiling-mounted LED batten lights will effectively illuminate the entire area. Your electrician can provide advice on the optimal lighting arrangement based on the shed's dimensions and layout.
• Two to four general power points — These will suffice for plugging in a charger, a radio, or a drop saw as required. Expect standard power points and switches to be on a single circuit.
• External light — A weatherproof LED light positioned above the door ensures visibility, helping you avoid fumbling around in the dark.

Configuring a Fully Equipped Powered Workshop Shed: Advanced Wiring Needs

If you regularly utilise power tools such as drop saws, bench grinders, and dust extractors, a more advanced wiring configuration is essential:

• Multiple circuits — Separate circuits for lighting, general power, and dedicated tool outlets will prevent flickering lights whenever a tool is activated, ensuring consistent performance.
• Higher-rated power points — Providing 15-amp or 20-amp outlets is crucial for accommodating heavier tools, enhancing the shed's functionality.

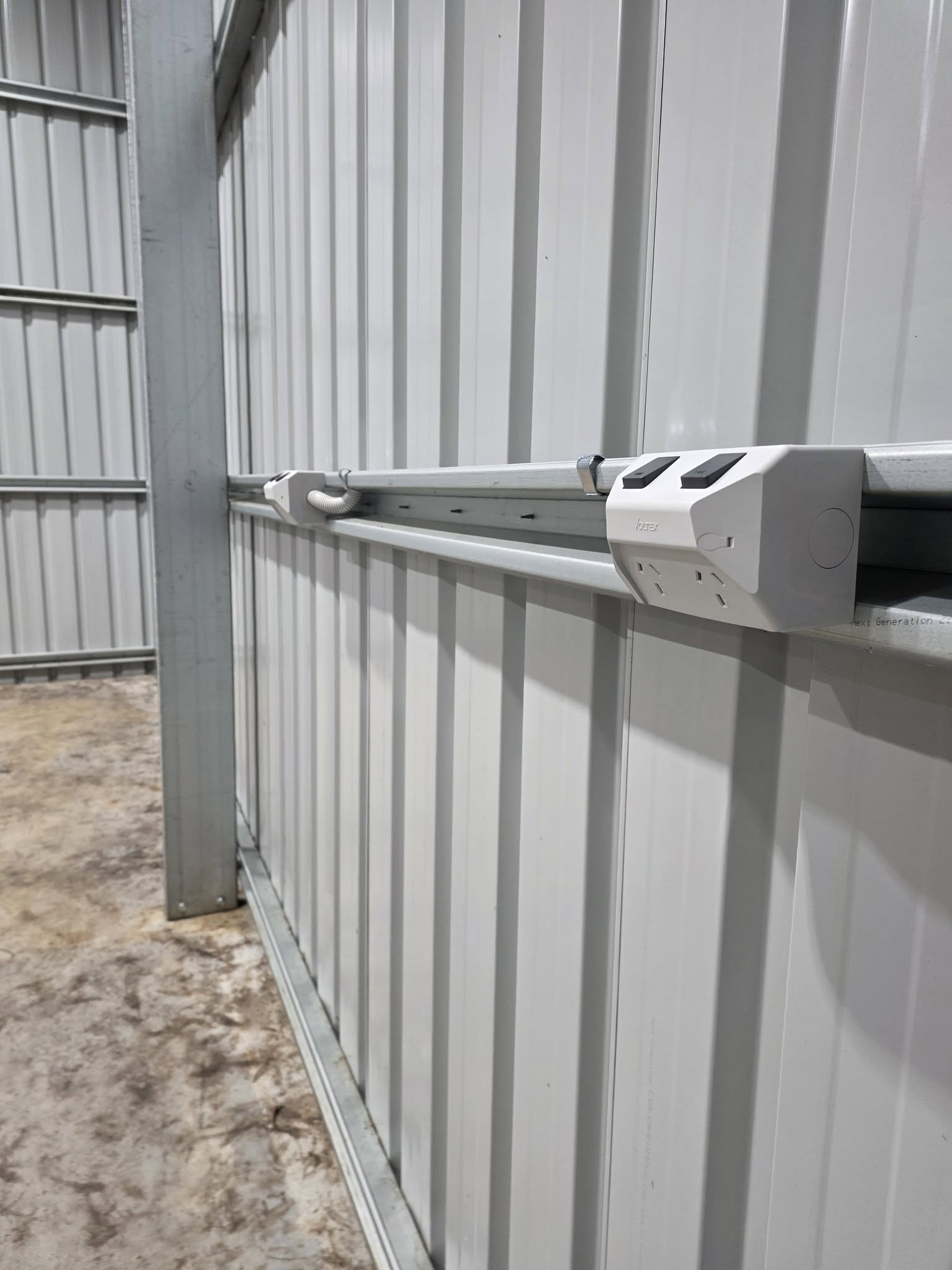

• Strategically placed additional power points — Install outlets at bench height instead of just at skirting level, taking into account the actual locations of your workbenches for optimum accessibility.

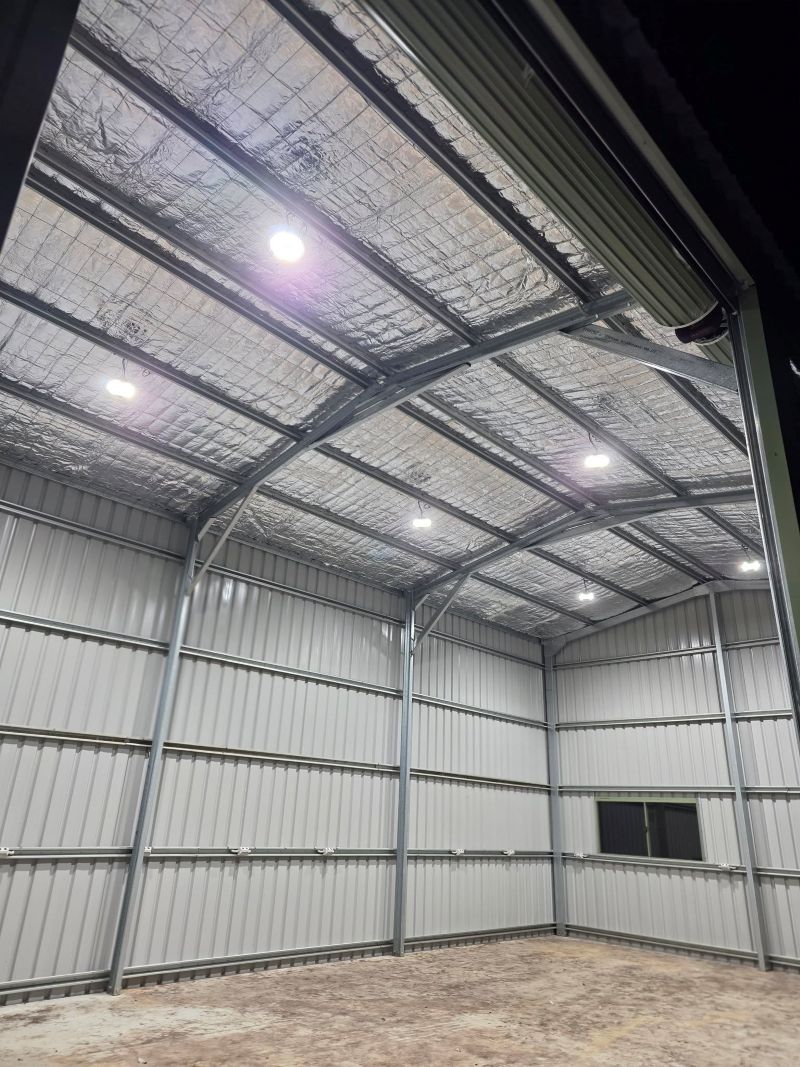

• Dedicated lighting — Ensure brighter, more focused lighting is installed over work areas, possibly utilising LED high-bays for larger sheds to enhance visibility.

For detailed guidance on configuring dedicated circuits for heavy tools, refer to our article, Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment.

Establishing a Comprehensive Workshop With Three-Phase Power Supply: What You Need to Know

If you plan on operating heavy-duty machinery, such as large compressors, lathes, MIG welders, or commercial-grade equipment, single-phase power might not suffice. In such cases, considering three-phase power is advisable.

Three-phase power delivers more consistent and higher-capacity energy. Your electrician will need to:

• Arrange for a three-phase supply from your energy distributor, which may take several weeks on the Mid North Coast.
• Install a three-phase sub-board in the shed, equipped with appropriate breakers and RCDs to ensure safety and compliance.
• Run heavier cabling — Keep in mind that three-phase cable runs are generally more expensive, particularly over long distances.
• Install three-phase outlets — These industrial-grade sockets must be rated for the equipment being utilised, ensuring safe and efficient operation.

If you are uncertain whether three-phase power is necessary for your requirements, check out our article, Do I Need Three-Phase Power on My Property? This resource elaborates on when it is beneficial and when a well-designed single-phase setup will be adequate. We also provide complete installations for three-phase switchboards should you choose that route.

Why Is Surge Protection Vital for Enhancing Your Shed's Safety?

Properties situated on acreage in the Mid North Coast frequently experience severe lightning storms. A direct or nearby strike can inflict extensive damage to everything housed within your shed, jeopardising tools, chargers, refrigerators, and all equipment connected to power sources.

Installing a high-quality surge protection device within the sub-board acts as affordable insurance against these risks. This device absorbs voltage spikes before they can reach your valuable equipment. For sheds housing expensive tools or a workshop setup, surge protection is an absolute necessity to prevent costly damage.

If your property uses a generator for backup power, your electrician can also install a generator changeover switch, allowing the shed (and the house) to switch to generator power safely during outages.

What Are the Key Regulations Regarding Council Approval and Compliance in NSW?

There are several crucial regulations to be aware of:

• All electrical work in NSW must be carried out by a licensed electrician. This rule is non-negotiable. While you may dig the trench yourself to reduce labour costs, all electrical tasks—including cabling, connections, sub-board installation, and more—must be executed by a licensed contractor who will issue a Certificate of Compliance (CCEW) upon completion.
• Depth requirements for underground cables must comply with AS/NZS 3000 (the Wiring Rules). Your electrician will handle this aspect of the installation efficiently and in accordance with regulations.
• If the shed is new construction, development approval may be required depending on your council and the shed's dimensions. While the electrical work itself does not necessitate a separate permit, the overall building project might require it.

Hack-It Electrical Solutions operates under NSW Electrical Contractor Licence #230609C. Every job we complete comes with a compliance certificate to ensure safety and legality.

Estimating Costs for Shed Wiring on Acreage: What You Should Anticipate

Each shed presents unique challenges—distance from the house, whether you need single-phase or three-phase power, the number of circuits required, and soil conditions for trenching all contribute to the overall costs. Here’s a rough guide for the Mid North Coast:

• Basic shed wiring (light + a few power points, short cable run) — Starting from $2,500, this option covers essential needs.
• Powered workshop shed with sub-board and multiple circuits — Starting from $4,500, providing enhanced functionality for more demanding applications.
• Full workshop setup with three-phase, dedicated circuits, and surge protection — Starting from $8,000+, catering to those with extensive power requirements.

Longer cable runs (50m+), rocky terrain necessitating a rock saw, or upgrades for three-phase supply will all increase the total cost. The most reliable method to receive an accurate estimate is to have your electrician conduct a site visit, evaluate the cable route, and understand the intended use of the shed.

For a customised quote tailored to your specific setup, please call us at 0402 079 803 or contact us here.

Addressing Your Most Common Questions About Shed Wiring

Can I Wire My Shed Myself In NSW?

No, all electrical work in NSW must be performed by a licensed electrician. This includes running cables to the shed, installing the sub-board, power points, lighting, and all other related tasks. Attempting DIY electrical work is not only illegal but also poses significant safety risks. Your electrician will provide a Certificate of Compliance upon completing the work, ensuring it meets regulatory standards.

How Deep Should Underground Cable Be Buried?

According to the Australian Wiring Rules (AS/NZS 3000), underground cables within conduit must be buried at least 500mm deep under standard conditions. If vehicles are likely to drive over the cable run, the depth must typically be increased to 600mm or more. Your electrician will assess your property and determine the appropriate depth for your specific situation.

Do I Need A Separate Meter For My Shed?

In most circumstances, no. The sub-board in your shed connects back to your main house switchboard and draws power from the same meter. A separate meter is only required if the shed is utilised as a distinct dwelling or commercial premises, which will necessitate further discussions with your council and energy distributor.

How Long Does It Take To Wire A Shed On Acreage?

A typical shed wiring project—comprising trenching, cable installation, sub-board setup, lights, and power points—usually takes one to two days to complete once the trench is prepared. If you are digging the trench yourself, your electrician can provide you with the specific route and depth prior to commencing work. Three-phase installations often take longer, as the supply connection must first be arranged with the distributor to ensure compliance.

Can I Run Power From The Shed To Other Buildings?

Yes, it is possible, but each additional building will require its own appropriately rated cable run and may need its own sub-board based on electrical load. Your electrician can design the entire layout across multiple buildings, ensuring that the cabling and switchboard capacity are sufficient from the outset, rather than making subsequent additions that could lead to complications and potential safety issues.

Ensure Safe and Efficient Wiring for Your Shed with Professional Assistance

If you reside on acreage around Bellingen, Coffs Harbour, Sawtell, Boambee, or anywhere on the Mid North Coast, Hack-It Electrical Solutions is dedicated to ensuring your shed is wired correctly—whether it’s a straightforward light-and-power setup or an extensive three-phase workshop.

Contact us at 0402 079 803 or reach out via our website to schedule a site visit. We will assess your property, identify the most suitable cable route, and provide you with a clear, comprehensive quote tailored to your specific needs.
