Solar Switchboard Upgrade: Enhance Battery & AC in Chelmer

Project Location: Chelmer
Project Scope: Switchboard enhancement
Result: Comprehensive single-phase switchboard upgrade supporting a 17.86kW solar installation, 30kWh battery storage, and ducted air conditioning—without the need for a three-phase upgrade.

Why You Should Choose Precision Electrical & Air for Your Switchboard Upgrade

This homeowner in Chelmer embarked on a significant renovation project that involved installing a robust 17.86kW single-phase solar photovoltaic (PV) system, accompanied by a 30kWh modular battery storage solution and comprehensive blackout protection for the residence. Additionally, a state-of-the-art ducted air conditioning system was integrated into the project. Prior to connecting these sophisticated systems, it was crucial to assess and upgrade the existing switchboard to ensure compliance with modern standards and effectively manage the increased electrical loads that these installations would necessitate.

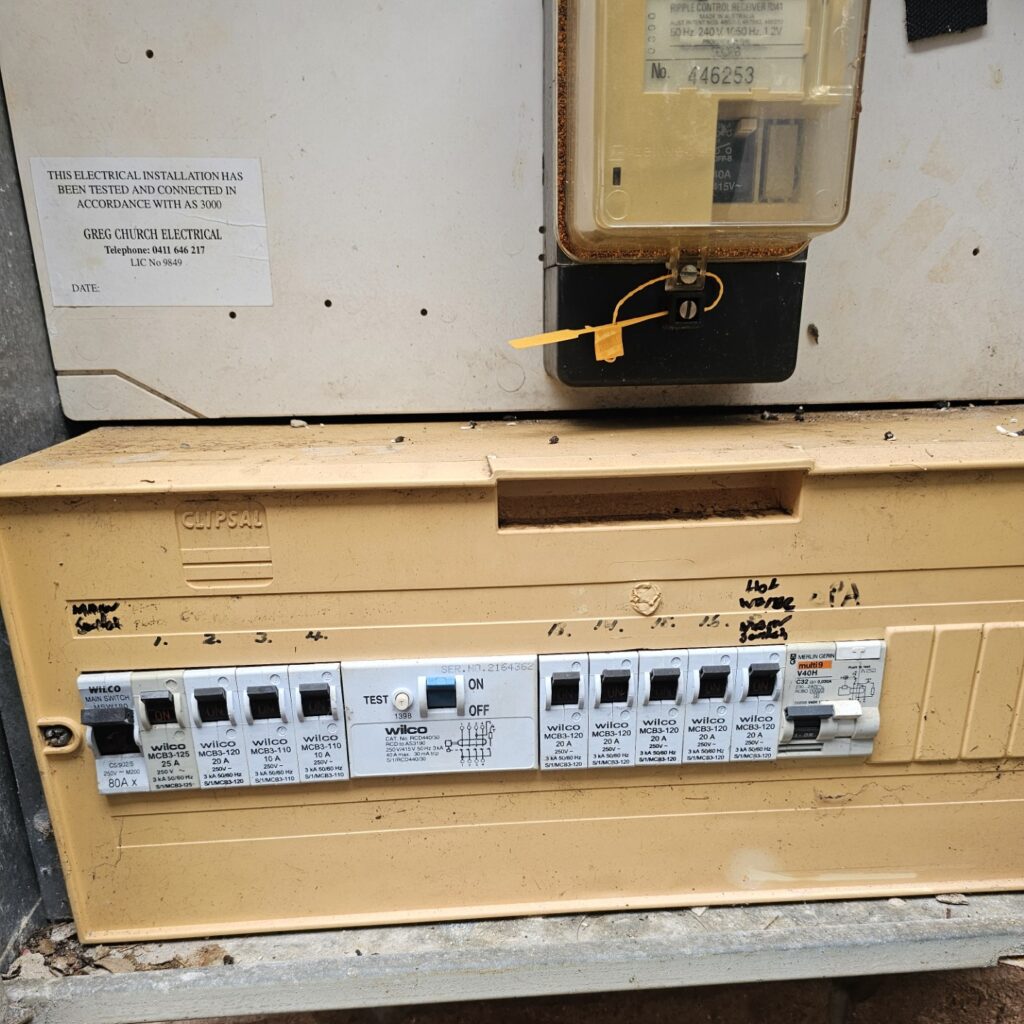

The original switchboard was outdated, featuring obsolete circuit breakers, a single Residual Current Device (RCD) that offered protection for the entire property, and a lack of capability to integrate solar energy and battery storage. Furthermore, the circuit labeling was inadequate, making it non-compliant with contemporary standards governing energy generation systems. This non-compliance posed a risk to the efficient operation of the upgraded systems, highlighting the need for a thorough review and subsequent upgrade.

Is a Three-Phase Upgrade Essential for Your Electrical System?

When considering the specifications of a 17.86kW solar system paired with a 30kWh battery, many homeowners mistakenly believe that a three-phase upgrade is necessary. This common misconception can lead to unexpected expenses for the homeowner, potentially amounting to between £3,500 and £6,000, along with an unnecessarily prolonged wait for approval from Energex for the required network modifications.

Detailed Technical Assessment Conducted

Two crucial factors were significant in determining whether a three-phase upgrade was indeed necessary. Firstly, the supply cable for the residence was strategically positioned close to the street junction. This advantageous positioning allowed the voltage rise calculation for solar energy export to remain well within the Energex single-phase limit of 2%. Secondly, as both the solar and battery systems were designed to reduce demand on the grid rather than increase it, there was no technical justification from the network's perspective for a three-phase upgrade. Additionally, the ducted air conditioning system also met the required parameters for efficient single-phase operation.

Consequently, the decision was made to maintain the single-phase configuration. The switchboard underwent an upgrade to ensure it could safely and effectively accommodate all new electrical loads without compromising safety or compliance with existing regulations.

Thorough Evaluation of Installed Components for Improved Safety

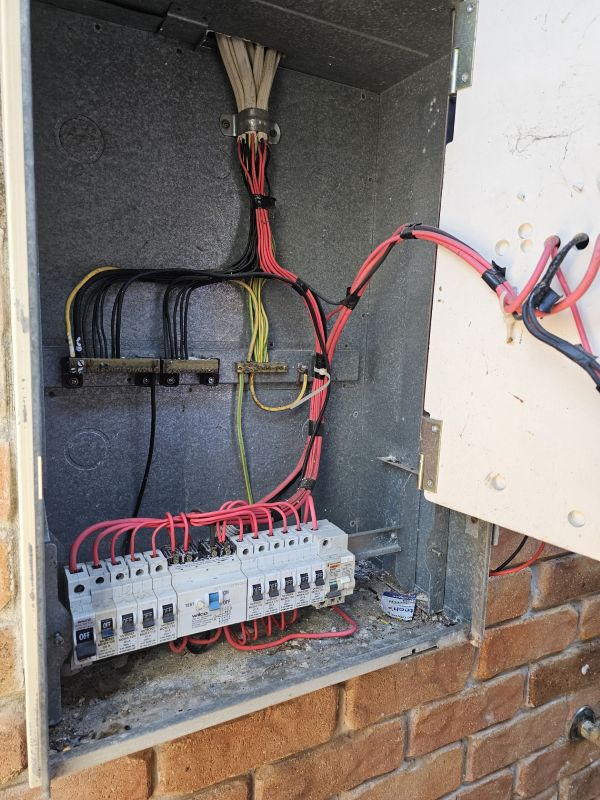

The existing switchboard was completely dismantled and underwent an extensive reconfiguration process. Each circuit breaker was replaced with new, correctly rated units sourced from Eaton, and each unit was meticulously labelled for easy identification. The circuits were carefully segregated; power, lighting, hot plates, ovens, split system air conditioning, and ducted air conditioning each received dedicated circuits to enhance safety and ensure compliance with current regulations.

A timer was integrated into the hot water service to ensure it operates efficiently during peak solar generation hours. This strategic addition minimises reliance on the grid by optimising the use of the solar system's output throughout the day. Furthermore, a dedicated Hot Water Service (HWS) contactor circuit was installed to guarantee proper functionality and safety.

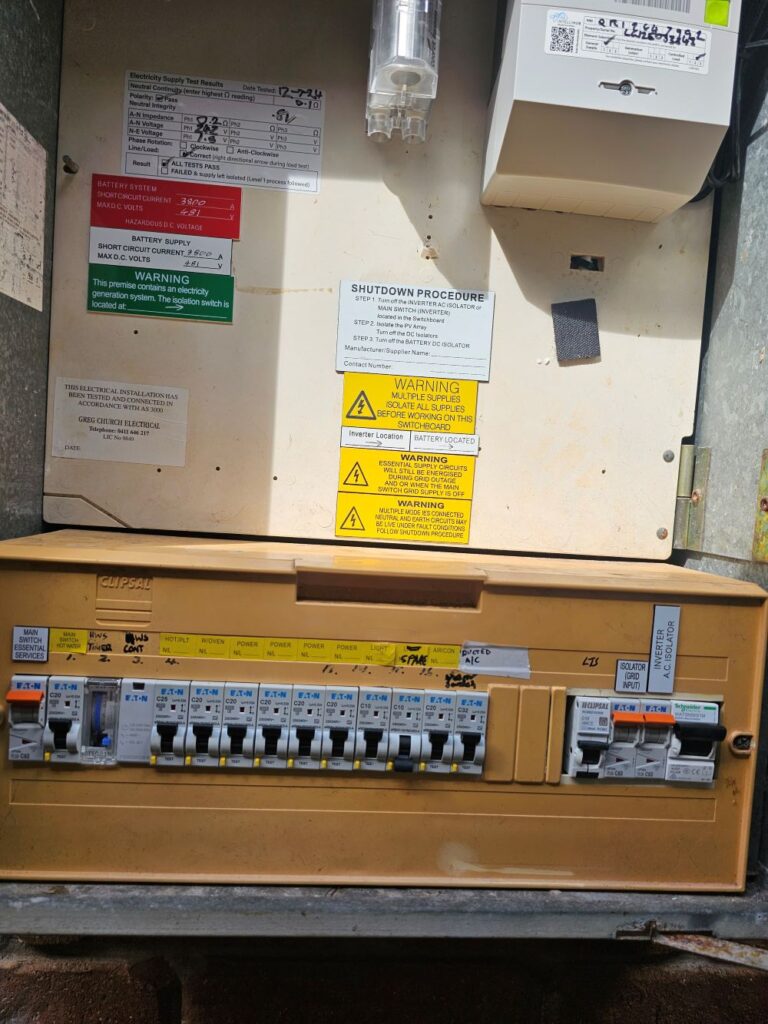

The upgraded switchboard was designed for seamless integration with both the solar inverter and battery system. This included the installation of an AC isolator, a dedicated grid isolator, and comprehensive safety labelling that clearly stated the battery system rating at 481V DC with a short-circuit current of 3800A, along with multiple supply warnings and a complete shutdown procedure. All electricity supply tests were conducted and successfully passed, with documentation available for the switchboard's compliance.

The completed switchboard now fully adheres to the latest Australian standards, ensuring that it is appropriately configured for any future electrical service work that may be required at the property.

Homeowner Enjoys Benefits from the Successful Upgrade

The homeowner has successfully obtained a fully upgraded and compliant switchboard that can safely support their solar system, 30kWh battery, and ducted air conditioning, all functioning efficiently within a single-phase configuration. Most importantly, they avoided unnecessary costs associated with a three-phase upgrade that was not essential for their specific situation, ensuring financial savings and enhanced functionality.

Have You Received a Quote for a Three-Phase Upgrade and Are You Unsure About Its Necessity?

While three-phase upgrades can be crucial in certain scenarios, they are not universally required. If you've received a substantial quote for a switchboard upgrade and remain uncertain about its relevance to your situation, allow Precision Electrical & Air to conduct a thorough analysis. We will provide you with a clear, expert assessment based on your cable distance, load requirements, and the actual criteria that Energex will utilise to approve your property.

We guarantee no upselling occurs; you will receive an accurate answer tailored to your home.

Your Most Common Questions Answered

How do electricians evaluate the need for three-phase power in solar systems?

The evaluation hinges on two primary aspects: voltage rise and load demand. Electricians assess the distance of the cable from your property to the street junction, calculating the potential voltage increase when your solar system exports energy back into the grid. Energex permits a maximum voltage rise of 2% for single-phase connections. If the cable run is short and the solar system's export remains within this limit, a single-phase configuration suffices. However, if the voltage rise exceeds this threshold, three-phase power becomes necessary to distribute the export load across three conductors, effectively keeping the voltage rise within acceptable limits.

Does a larger solar system automatically necessitate three-phase power?

No, the size of the system alone does not dictate the necessity for three-phase power. A 17.86kW solar system can operate legally and safely on a single-phase basis if the voltage rise calculations are favourable and no new high-demand loads are introduced to the property. Critical factors to consider include the cable length to the street junction, the existing load profile of the home, and the technical requirements from the network distributor—not merely the kilowatt rating of the solar panels.

What is voltage rise, and why is it vital for solar energy installations?

Voltage rise refers to the increase in electrical voltage that occurs when a solar system exports power back into the grid. The further your home is from the street junction, the greater the resistance in the cable, leading to a higher voltage rise during energy export. Excessive voltage rise can create complications for neighbouring properties connected to the same line. Network distributors such as Energex enforce strict limits—usually set at 2% for single-phase connections. Electricians must determine whether your solar system's performance remains within this limit to ascertain if single-phase or three-phase power is appropriate for your property.
